pass multiple quick action objects into macos shortcuts using python

4 min read

I have been using the py-imessage-shortcuts python package to auto respond to text messages with chat GPT in my iMessage Bot. Now that openai has DALL·E it would be nice to allow the bot to also be extended to include images; which py-imessage-shortcuts doesn’t suport. After some experimentation I was able to figure out how to extend the package to allow images. It involves a trick I wasn’t able to find online through googling so documenting it here in case someone else finds it useful.

To start, the author of py-imessage-shortcuts found out that a cli command can be used to run a shortcut by name. Using that and Python’s subprocess module, any shortcut can be run with:

from subprocess import Popen
SHORTCUT_NAME = 'shortcut-name'
Popen([
    'shortcuts',
    'run',
    SHORTCUT_NAME,
])

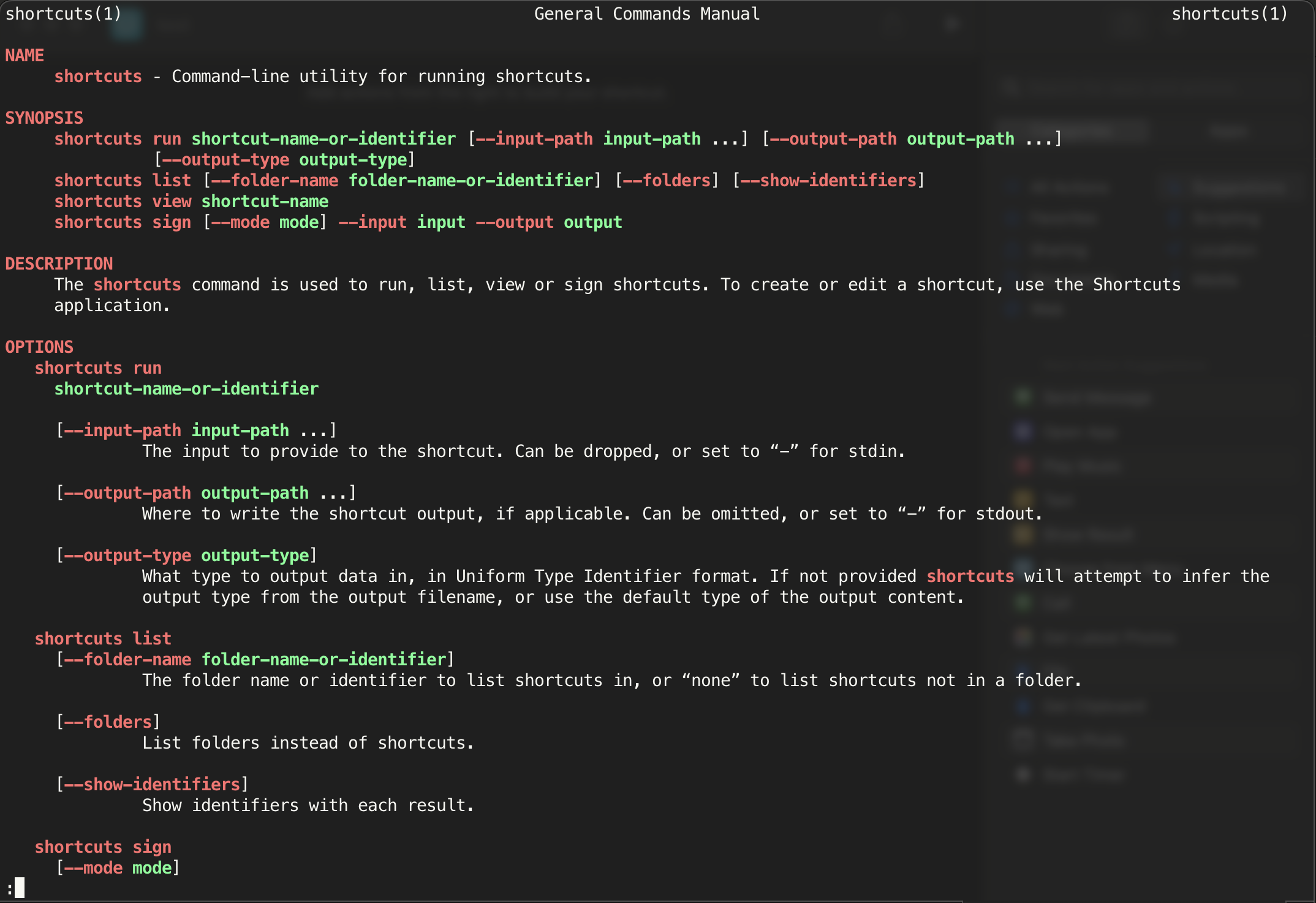

Now to get input into shortcut, the shortcuts man page documents that it can take file input with the --input-path flag.

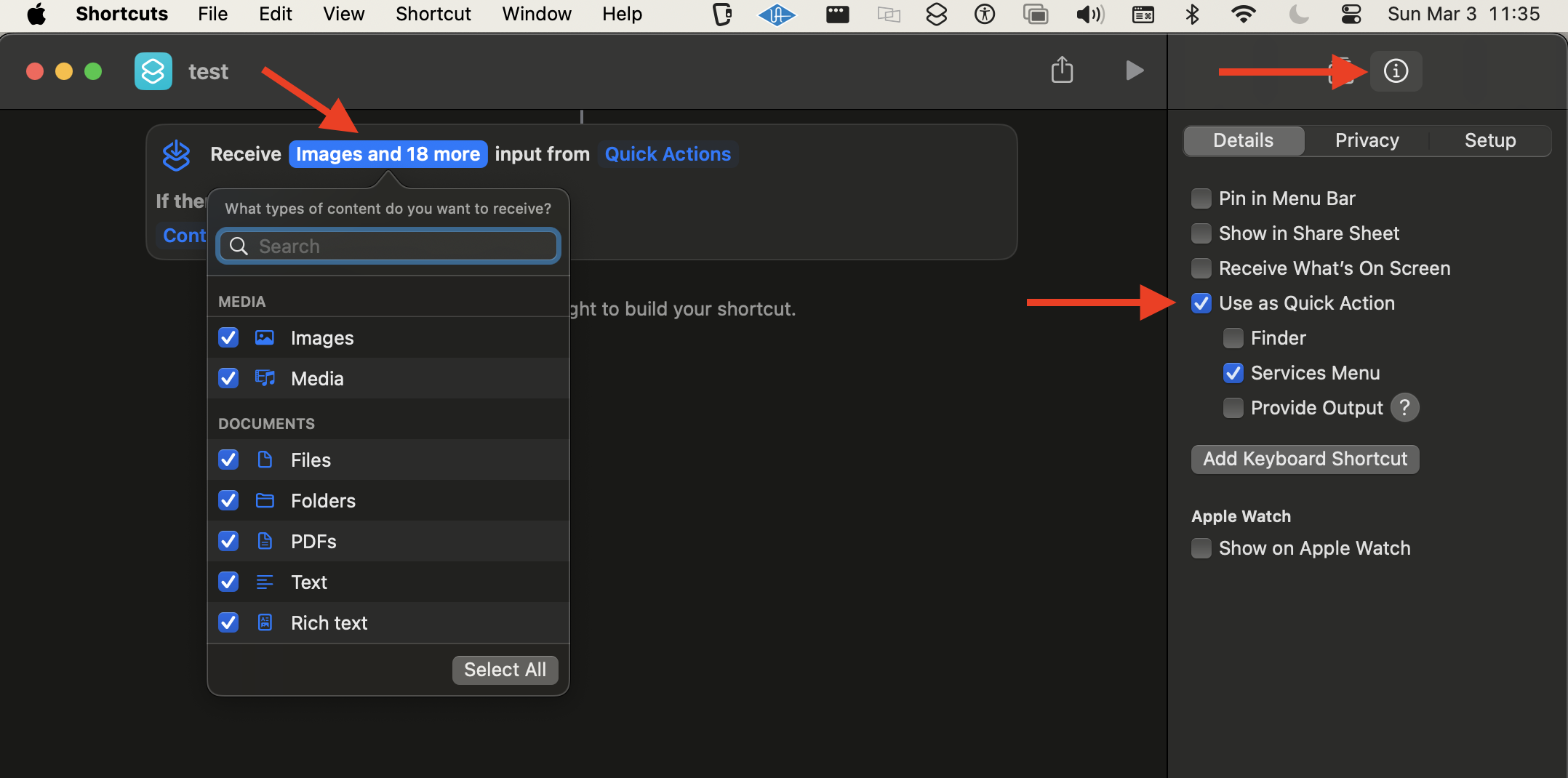

Which can be consumed in the shortcut by enabling Use as Quick Action

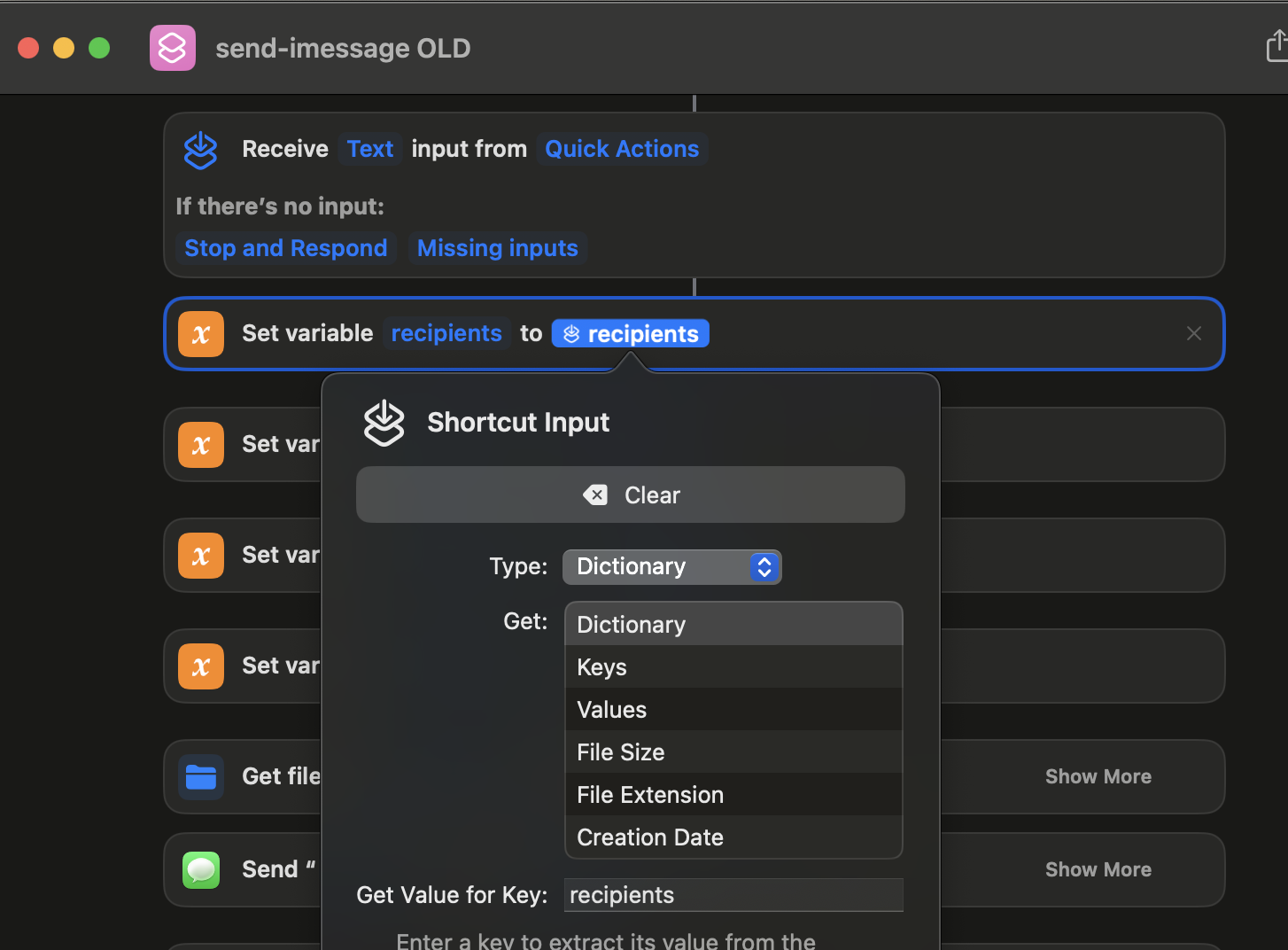

py-imessage-shortcut uses this to pass a dictionary to the send-imessage shortcut. Since the input has to be a file, first the package writes the dictionary to a json file which has its path passed to the shortcuts command using the --input-path flag. Then, in the Shortcuts App, the quick action input is set to type text. This allows the Quick Action Object to be parsed as a dictionary with the Set variable action. The Set Variable action needs the to clause is set to the key of the value to be extracted from the dictionary. Did that make sense? Here’s the python and a screenshot from the shortcut:

with open(TEMP_FILE_PATH, 'w') as f:
    message_details = {
        'recipients': recipients,
        'message': message
        }
    json.dump(message_details, f)

Popen([
    'shortcuts',
    'run',
    SHORTCUT_NAME,
    '--input-path',
    TEMP_FILE_PATH,
])

So that’s all the magic used in py-imessage-shortcuts. To extend it to allow images, simply send multiple --input-path clauses and enumerate them in the MacOS shortcut. Here’s the function I wrote in my pr to py-imessage-shortcuts :

def _dump_file(recipients: list[str], message: str) -> None:
    with open(TEMP_FILE_PATH, 'w') as f:
        message_details = {
            'recipients': recipients,
            'message': message
            }
        json.dump(message_details, f)

def send_image(recipients: list[str], message: str | None, image_path: str) -> None:
    """enables an image to be sent from an absolute file path

    Args:
        recipients (list[str]): The phone numbers to address the iMessage to
        message (str | None): the message to send with the photo, if no message should be included, pass None
        image_path (str): file path to image, must be absolute
    """
    if len(message) == 0:
        message = None
    _dump_file(recipients, message)

    Popen([
        'shortcuts',
        'run',
        SHORTCUT_NAME,
        '--input-path',
        TEMP_FILE_PATH,
        '--input-path',
        image_path,
    ])

Then to get both the message and the image into Shortcuts, enable images in addition to text in the Quick Actions Input. The input can be treated as a List, where the order of the input objects is the same order as the --input-path clauses passed to the shortcuts cli command. So I used the Get Item from List action to separate the inputs and treat them individually as pictured by the full shortcut below:

Corner Cases:

Interestingly the Send Message shortcut action does not like empty strings; it will alert with an error saying that there’s no value for it. I found that encoding Python’s None value pairs well Shortcut’s if <variable> has any value action.

The Quick Actions Input does not seem to enforce the type(s) you give in the Shortcuts GUI. The shortcut pictured above has no problem if only a text object is provided (omitting the image).

Dead end I explored on the way to this:

Initially I tried to just pass the path to the image within the existing dictionary py-imessage uses BUT shortcuts seems to be limited about where the Get file from ____ at path ____ action can read the file/image from. If the image isn’t in the iCloud shortcuts folder you’ll get an error that reads : “Invalid file path The provided file path must be contained with the directory.”. Which to combat I had to first copy the image to the iCloud shortcuts directory, and use that as the file from clause.

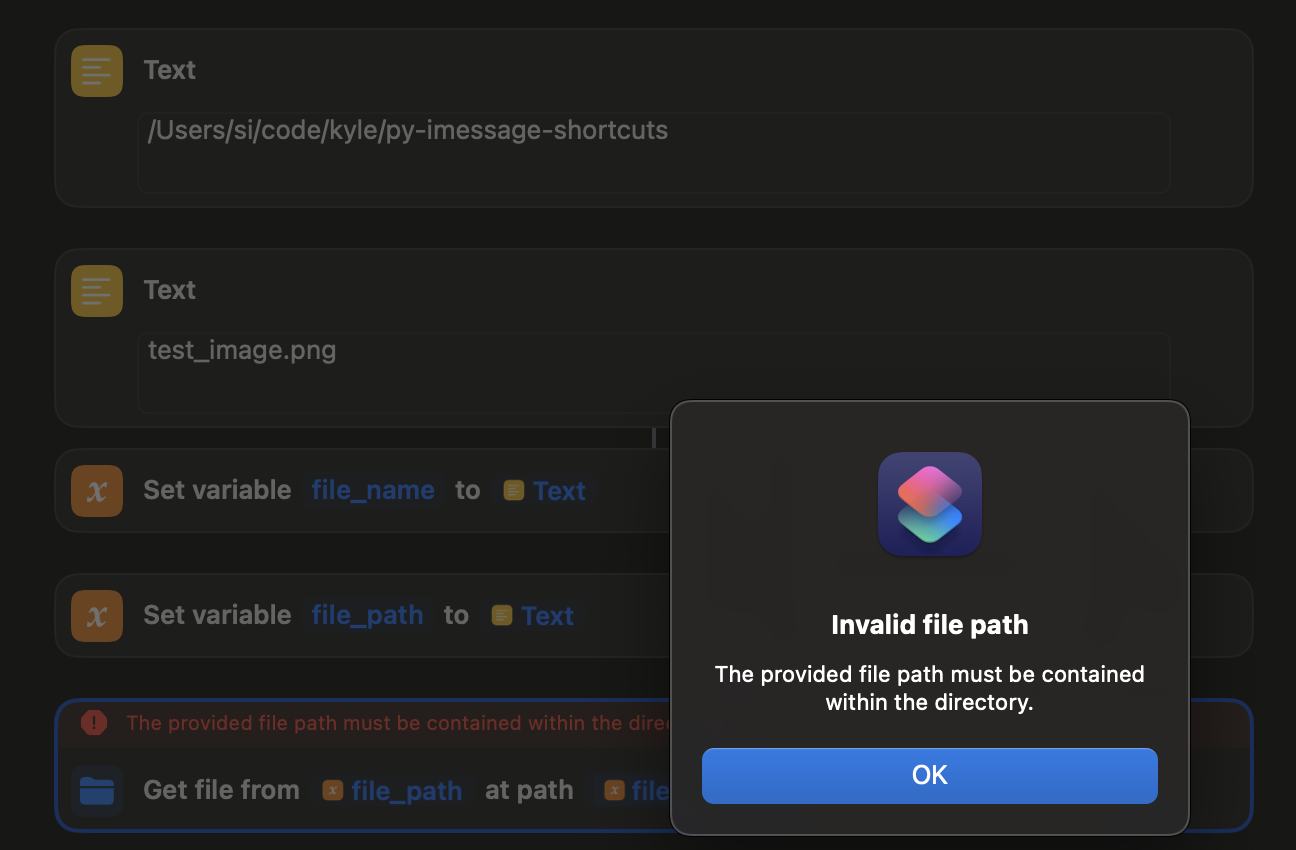

The error:

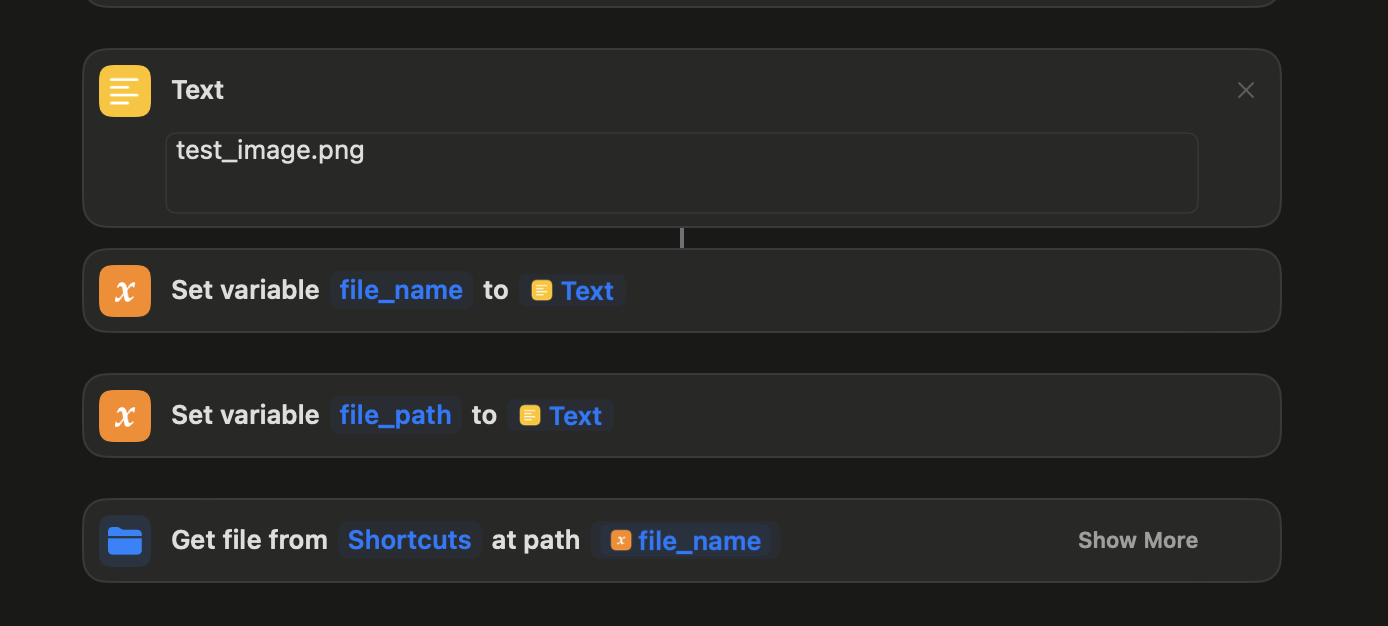

The fix:

import shutil, os
file_name = './test_image.png'
icloud_shortcuts_dir = os.path.join(
        os.path.expanduser('~'),
        'Library/Mobile Documents/iCloud~is~workflow~my~workflows/Documents')
shutil.copy(file_name, icloud_shortcuts_dir)

# then run the Popen cmd here
